4.8mm spiral pc wire for concrete pole hollow slab

4.8mm spiral pc wire for concrete pole hollow slab
4.8mm spiral pc wire for concrete pole hollow slab4.8mm spiral pc wire for concrete pole hollow slab4.8mm spiral pc wire for concrete pole hollow slab4.8mm spiral pc wire for concrete pole hollow slab4.8mm spiral pc wire for concrete pole hollow slab
group name
Prestressed Concrete Steel Wire
Min Order
25 metric ton
brand name
Chunpeng PC Wire and PC Strand
model
4.8mm
Nearest port for product export
Tianjin xingang, Qingdao
Delivery clauses under the trade mode
FOB, CFR, CIF
Acceptable payment methods
T/T, L/C
update time
Sat, 06 Mar 2021 15:47:48 GMT

Paramtents

  • Material SWRH77B SWRH82B

  • Tensile strength 1470-1860Mpa

  • Certification ISO9001, SGS , BV

  • Coil weight 1-2TONS

  • Surface treatment Spiral/plain/indented

  • Diameter 3.8mm-12mm

  • norminal cross section 12.57-63.62

  • bending time 4

  • Standard ASTM A421, BS5896, EN10138, JISG3536

  • Product Name 4.8mm spiral pc wire for concrete pole

Packging & Delivery

  • Min Order25 metric ton

Briefing

CHUNPENG provides high-quality 4.8mm spiral pc wire for concrete pole hollow slab.

Detailed

7.0mm 1670Mpa  Spiral PC wire for Post Tension

  Sophie  chen

Email: sophiechen..........cc

Cellphone:0086138200626419(whatsapp)


The CHUNPENG PC wire product contains 3.8mm to 12mm pc wire.

 Strandards: GB/T5223, ASTMA421, BS5896, JISG3536, ISO6934, EN10138 or other special required standards.

Product Name

4.8mm spiral pc wire for concrete pole



Wire Type

Plain wire

Spiral type

Standard

GB/T5223, ASTMA421, BS5896, JISG3536, ISO6934, EN10138

Type of Surface

Helix(screw), Plain, indented.

Dia.

4.00mm, 4.80mm, 5.00mm, 6.00mm, 6.25mm, 7.00mm,8mm,9mm

Coil weight

1-3 tons

Elongation

3.5%

Tensile Strength

1470Mpa-1860Mpa

Minimum order

10tons

Payment term

TT or LC





  Usage

Low relaxation wire used for prestressed steel structure, prestressed and

 post-tensioning technology in large, medium and small sizes of various

 shapes of PC structures, such as civil engineering construction of large

scale railroad,highway, etc.


Dia.

(dn/mm)



 Tolerance   (mm)



 Tensile

Strength  (op0.2/Mpa)     Not less than



 Yield Strength  (op0.2/Mpa)  Not less than



 Elongation at  max  load (Lo=200

ogt/%) Not less than





Bending  Times   Not less

than





Bending  Radius  R/mm

Relaxation Properties

The relaxation at

1000h  (Initial load to 70%

of  nominal  tensile  strength)  (r/%)  Not more

 than

4.8

±0.05

1470

1570

1670

1770

1860

1290

1380

1470

1560

1640











3.5





4





15













2.0



5.0

6.0





±0.05

1470

1570

1670

1770

1290

1380

1470

1560



4

   15

6.25

7.0

20

8.0



±0.06

1470

1570

1290

1380

4

20

9.0

25

Dia.

 (dn/mm)



No.of

Helix Rib

Lining Dia.And

Tolerance(mm)

Outline Dia.

And Tolerance

(mm)

Width of

Single Rib

(α/mm)

Layer Length

(c/mm)

Nominal cross

section

Sn/mm2

Re. Mass

per meter

(g/m)

4.00



 4

3.85±0.05

    4.25±0.05

0.92-1.30

24-30

       12.57

    98.6

4.80

      4

    44.60±0.05

    5.10±0.05

1.30-1.70

     28-36

       18.09

     142

5.00

      4

    5.30±0.05

    5.30±0.05

1.30-1.70

     28-36

       19.63

     154

    6.00

      4

    6.30±0.05

    6.30±0.05

1.60-2.00

     30-38

       28.27

     222

    6.25

      4

    6.70±0.05

    6.70±0.05

1.60-2.00

     30-40

       30.68

     241

    7.00

      4

    7.46±0.05

    7.46±0.10

1.80-2.20

     35-45

       38.48

     302

    8.00

      4

    8.45±0.05

    8.45±0.10

  2.0-2.40

     40-50

       50.26

     394

9.00

 4

9.45±0.05

9.45±0.10

2.10-2.70

42-52

63.62

499

 High Quality !!1*7 12.7mm Prestressed Concrete Strand for Crane Beam




High Quality 5mm Prestressed Concrete Steel Wire for Concrete Pole



 1.Baling strip, inner PVC film, outer damp-proof paper-plastic compound packing cloth,

2. In container

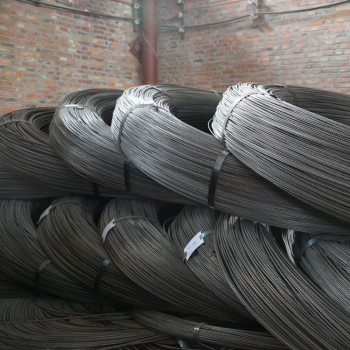

3. Packed in coil (1Ton -2 Ton)or as your requirement


Both ends of one pc strand coil shall be inspected through stress relaxation test,

tension test, hydraulic universal test, bending test and boroscope test, etc.




Pc wire is mainly used for prestressed and posttensioning technology in various shapes of prestressed concrete structures


Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 15 days if the goods are in stock. or it is 30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 30% T/T in advance ,balance before shippment or LC at sight.
