EN10138 STANDARD 9.3MM PRESTRESSED CONCRETE STEEL STRAND

EN10138 STANDARD 9.3MM PRESTRESSED CONCRETE STEEL STRAND
EN10138 STANDARD 9.3MM PRESTRESSED CONCRETE STEEL STRANDEN10138 STANDARD 9.3MM PRESTRESSED CONCRETE STEEL STRANDEN10138 STANDARD 9.3MM PRESTRESSED CONCRETE STEEL STRANDEN10138 STANDARD 9.3MM PRESTRESSED CONCRETE STEEL STRANDEN10138 STANDARD 9.3MM PRESTRESSED CONCRETE STEEL STRAND
group name
Prestressed Concrete Steel Strand
Min Order
1 metric ton
brand name
Chunpeng PC Wire and PC Strand
model
9.3MM PRESTRESSED CONCRETE STEEL STRAND
Nearest port for product export
Tianjin xingang, Qingdao
Delivery clauses under the trade mode
FOB, CFR, CIF
Acceptable payment methods
T/T, L/C
update time
Wed, 02 Dec 2020 09:44:57 GMT

Paramtents

  • Name of product EN10138 STANDARD 9.3MM PRESTRESSED CONCRETE STEEL

  • Raw Material SWRH77B/SWRH82B

  • Tensile Strength 1860 MPa

  • Minimum Breaking Load 183.7KN

  • Min. Load at 1% Extension 165.3KN

  • Elongation at Max. Load ≥ 3.5%

  • Tolerance +0.40mm/-0.20mm

  • Weight of coil 2.5-3.5 tons

  • Surface Uncoated

  • Inspection Both ends of each coil is inspected

Packging & Delivery

  • Min Order1 metric ton

Briefing

EN10138 STANDARD 9.3MM PRESTRESSED CONCRETE STEEL STRAND

Detailed

EN10138 STANDARD 9.3MM PRESTRESSED CONCRETE STEEL STRAND
SGS approved factory 12.7mm pc steel strand for post tension projects

Name of product:

EN10138 STANDARD 9.3MM PRESTRESSED CONCRETE STEEL STRAND

Common diameters:

9.3mm, 9.53mm, 11.11mm, 12.7mm & 15.24mm

Standard:

GB/T5224, ASTMA416, BS5896, JISG3536, ISO6934 & EN10138

Inspection:

Both ends of one pc strand coil shall be inspected through stress relaxation test,

tension test, hydraulic universal test, bending test and boroscope test, etc.

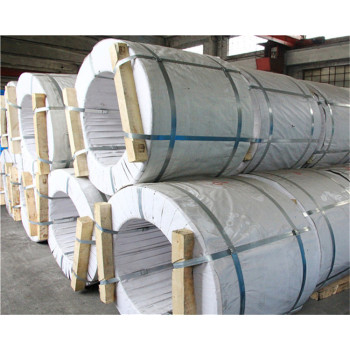

Package:

Inner diameter: 760mm

Outer diameter: 1400mm

Width of coil: 760mm

Packaging steps:

(1) Coils are wrapped by 8 steel strips

(2) Wrapped by waterproof cloth

(3) Wrapped by 8 steel strips (6+2)

(4) Added with wood pallet

Delivery:

By container, and the date of delivery shall be determined by sizes

and quantity in the order

Port of Shipment:

Tianjin Port, China

Payment:

T/T or L/C

Samples:

Free samples will be provided to our honored customers.

Application:

Large-span bridges on railway and highway, overhead crane beam, rock-soil anchoring project, multi-storey industrial buildings, stadiums, coal mines, etc.

Production Line

 SGS approved factory 12.7mm pc steel strand for post tension projects

Testing

SGS approved factory 12.7mm pc steel strand for post tension projects



Advantage

SGS approved factory 12.7mm pc steel strand for post tension projects

Related Products

SGS approved factory 12.7mm pc steel strand for post tension projects

FAQ

 1. What's your annual output?

We can manufacture 270000 tons PC strand every year.

2. Can you dispatch free PC strand samples?

Yes, we are honored to send PC strand samples to our valued customer like you :)

3. What are the common diameters that you manufacture?

We manufacture 9.53mm/12.7mm/15.24mm PC strand most.
