ASTM 12.7MM PC Strand for Viaduct

group name: Prestressed Concrete Steel Strand

Min Order: 25 metric ton

brand name: Chunpeng PC Wire and PC Strand

model: 12.7mm

Nearest port for product export: Tianjin xingang, Qingdao

Delivery clauses under the trade mode: FOB, CFR, CIF

Acceptable payment methods: T/T, L/C

update time: Sat, 06 Mar 2021 10:41:04 GMT

contact supplier

Paramtents

Tensile strength 1460-1860Mpa
Diameter 6.5MM-21.8MM
Certification BV/ISO9001:2000/ SGS
Structure 1*3/1*7/1*19
Grade 270(1860Mpa)
Usage Construction Materilals
Package Roll Packing
Standard ASTM A416, BS5896, EN10138
Material 77B/82B
Product name ASTM 12.7MM PC Strand for Viaduct

Packging & Delivery

Min Order25 metric ton

Briefing

CHUNPENG provides high-quality ASTM 12.7mm PC strand wire that can be used for viaduct.

Detailed

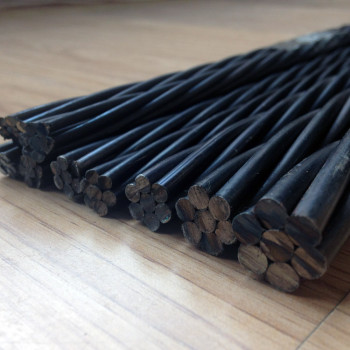

ASTM 12.7MM PC Strand for Viaduct

Sophie Chen

Email: sophiechen..........cc

Tel: 0086-22-65833507

Cellphone:0086138200626419（whatsapp)

1. Item	ASTM 12.7MM PC Strand for Viaduct
2. Specification	1 x 7 wire, 1x2 wire,1x3 wire,1x19 wire 9.53mm, 12.7mm, 15.2mm, 15.7mm, 17.8mm, 21.8mm
3. Appliacation	Widely Used for any aqueduct, viaduct, bridge, tunnel and railway construction
4. Certificate	ISO9001:2000 SGS BV
5. Standard	ASTM A416, BS5896, JIS G3536, GB/T5223, EN10138,PREN6138
6. Output	500, 000 ton/year
7. Features	High tensile, low relaxation
8. Twist	Left and right-hand lay
9. Factory Test	Norminal diameter, breaking force, elongation at rupture, tensile strength, stress relaxation property, relax value at 1000h
10. Packing	Standard Export Package (Wrapped by steel strips, waterproof cloth sheet, wooden pallet)
11. Original	Tianjin, China
12. Payment	T/T, LC
13. Delivery Time	in 10 days after we receive your deposit or LC

High Quality !!1*7 12.7mm Prestressed Concrete Strand for Crane Beam

Inner Diameter: 760mm
Outside Diameter:1400mm Max
Coil’s width: 760mm
Coil’s Weight: 2500~3500 kg
We use vapors corrosion inhibiting technology on export anti-rust packing. Out side of the coil has 3 wraps.

There are two wooden pallets on the bottom of the coil. The coil is eye to sky in the container.

FAQ

1. How many years have you been in this industry?

We began to manufacture pc strand and pc wire since 1994, as a result, we have 21 years' experience in manufacturing and exporting pc products.

2. What's your acceptable payment term?

T/T & L/C.

3. What is the application of pc strand?

Large-span bridges on railway and highway, stadiums, industrial buildings and coal mines.
