12.7mm wire strand steel cable for prestressing
- group name
- Prestressed Concrete Steel Strand
- Min Order
- 1 metric ton
- brand name
- Chunpeng PC Wire and PC Strand
- model
- 12.7mm
- Nearest port for product export
- Tianjin xingang, Qingdao
- Delivery clauses under the trade mode
- FOB, CFR, CIF
- Acceptable payment methods
- T/T, L/C
- update time
- Fri, 05 Mar 2021 13:50:43 GMT
Paramtents
Steel Grade: SWRH 82B wire rod
Standard: ASTMA416/EN10138
Tensile strength: 1370-2160MPA
Coil weight: 2.5-3.5tons
Tolerance: ±1%, +0.40mm/-0.20mm
Packging & Delivery
-
Min Order1 metric ton
Briefing

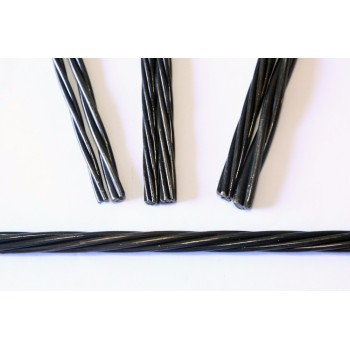

CHUNPENG 12.7mm wire strand steel cable can be used for prestressed concrete. Other choices: 9.3mm, 12.5mm, 15.2mm
Detailed
As the bigges PC Strand facotry in China, we offer:
| 1: FACTORY DIRECT PRICE. |
| 2: NICE QUALITY. |
| 3: QUICKEST PRODUCTION TIME WITHIN 7 DAYS. |
| 4: ONLINE PAYMENT. |
| 5: NO MOQ FOR REGULAR SIZE LIKE 12.7MM AND 9.53MM |
| 6: AFTER SALES SERVICES 24/7 |
| 7: PC STRAND, PC WIRE, CORRUGATED DUCT, ANCHOR TO BUY IN ONE COMPANY |
Product Description
| 1. Item | Prestressing steel 12.7mm 15.2mm pc strand per EN10138 1860Mpa |
| 2. Specification | 7 wires, 3 wires
9.3mm 12.7mm 12.5mm 15.2mm |
| 4. Certificate | ISO9001:2000 SGS BV |
| 5. Standard | ASTM A416, BS5896, JIS G3536, GB/T5223, EN10138 |
| 6. Output | 500, 000 ton/year |
| 7. Features | High tensile, low relaxtion |
| 8. Twist | Left and right hand lay |
| 9. Factory Test | Norminal diameter, breaking force, elongation at rupture, tensile strenght, stress relaxastion property, relax value at 1000h |
| 10. Packing | Wrapped by steel strips, waterproof cloth sheet, wooden pallet |
| 11. Original | Tianjin, China |
| 12. Payment | T/T, LC |
ASTM A416 STANDARD
| Grade | Nominal Dia. | Tolerance (mm) | Section Area (Sn/mm2) | Mass Per 1m (g/m) | Breaking Load (Fm/KN) | Min. Load at 1% Extension (Fp0.2/KN) | (L0>=500mm) Elongation Max Load Not less than (%) | The Relaxation at 1000 Hours (r/%) | |
| (In) | (mm) | ||||||||
| 270k | 3/8 | 9.53 | +0.65 -0.15 | 54.847 | 432 | 102.3 | 92.1 | 3.5 | 2.5 |
| 7/16 | 11.11 | 74.19 | 582 | 137.9 | 124.1 | ||||
| 1/2 | 12.70 | 98.71 | 775 | 183.7 | 165.3 | ||||
| 3/5 | 15.24 | 140.00 | 1102 | 260.7 | 234.6 | ||||
Packaging & Shipping
| Packaging: | Inner diameter: 760mm |
| Outside diameter: 1400mm max | |
| Coil's width: 760mm | |
| Coil's Weight: 2500-3500kg | |
| vapors corrosion inhibiting technology on export anti-rust packing | |
| Shipping Information | In 20' container, about 25,000kg/container |
Why Choose Us
kindly reminder :
all our certifications are REAL ONE.
NOT FAKE , NOT FAKE , NOT FAKE !!!
PLEASE CLIKE HERE TO CONTACT US TO SHOW YOU!!!
WE HAVE CERTIFICATION FOR :
1: ISO for factory
2: SGS for both factory and production line
3: SGS quality certificate for 12.7mm pc strand
4: SGS quality certificate for pc wire
Company Information
| Location | Tianjin China |
| Established Year | 1994 |
| Registered Capital | USD16 Million |
| Production Line | 11 production lines, and 13 wire drawing matchines |
| Production Capacity | PC Strand 260,000 ton PC Wire 40,000 ton Unbonded PC Strand 40,000 ton |
| Quality Control | 3 Test Laboratories and 16 Quality Controller |
| Certificate | DCL and ACRS Certificates for PC Strand ISO and SGS Certificates for Factory |
| Contact Information | Kay Whatsapp: 008615802244573 |
