2 wires, 3 wires PC Strand Wire 8.6mm for prestressing concrete
- group name
- Prestressed Concrete Steel Strand
- Min Order
- 1 metric ton
- brand name
- Chunpeng PC Wire and PC Strand
- model
- 2 wires, 3 wires pc strand 8.6mm
- Nearest port for product export
- Tianjin xingang, Qingdao
- Delivery clauses under the trade mode
- FOB, CFR, CIF
- Acceptable payment methods
- T/T, L/C
- update time
- Fri, 05 Mar 2021 14:04:00 GMT
Paramtents
Certification: ISO9001:2000
Tensile strength: 1370-2160MPA
Special Use: Cold Heading Steel
Grade: 82B, 270(1860Mpa)
Application: Construction
Packging & Delivery
-
Min Order1 metric ton
Briefing
Detailed
| 1: FACTORY DIRECT PRICE. |
| 2: NICE QUALITY. |
| 3: QUICKEST PRODUCTION TIME WITHIN 7 DAYS. |
| 4: ONLINE PAYMENT. |
| 5: NO MOQ FOR REGULAR SIZE LIKE 12.7MM AND 9.53MM |
| 6: AFTER SALES SERVICES 24/7 |
| 7: PC STRAND, PC WIRE, CORRUGATED DUCT, ANCHOR TO BUY IN ONE COMPANY |
| 1. Item | Prestressing steel 12.7mm 15.2mm pc strand per EN10138 1860Mpa |
| 2. Specification | 7 wires, 3 wires
9.3mm 12.7mm 12.5mm 15.2mm |
| 4. Certificate | ISO9001:2000 SGS BV |
| 5. Standard | ASTM A416, BS5896, JIS G3536, GB/T5223, EN10138 |
| 6. Output | 500, 000 ton/year |
| 7. Features | High tensile, low relaxtion |
| 8. Twist | Left and right hand lay |
| 9. Factory Test | Norminal diameter, breaking force, elongation at rupture, tensile strenght, stress relaxastion property, relax value at 1000h |
| 10. Packing | Wrapped by steel strips, waterproof cloth sheet, wooden pallet |
| 11. Original | Tianjin, China |
| 12. Payment | T/T, LC |
ASTM A416 STANDARD
| Grade | Nominal Dia. | Tolerance (mm) | Section Area (Sn/mm2) | Mass Per 1m (g/m) | Breaking Load (Fm/KN) | Min. Load at 1% Extension (Fp0.2/KN) | (L0>=500mm) Elongation Max Load Not less than (%) | The Relaxation at 1000 Hours (r/%) | |
| (In) | (mm) | ||||||||
| 270k | 3/8 | 9.53 | +0.65 -0.15 | 54.847 | 432 | 102.3 | 92.1 | 3.5 | 2.5 |
| 7/16 | 11.11 | 74.19 | 582 | 137.9 | 124.1 | ||||
| 1/2 | 12.70 | 98.71 | 775 | 183.7 | 165.3 | ||||
| 3/5 | 15.24 | 140.00 | 1102 | 260.7 | 234.6 | ||||

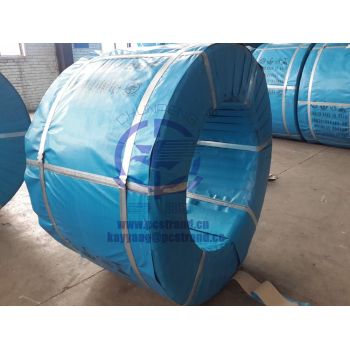

| Packaging: | Inner diameter: 760mm |
| Outside diameter: 1400mm max | |
| Coil's width: 760mm | |
| Coil's Weight: 2500-3500kg | |
| vapors corrosion inhibiting technology on export anti-rust packing | |
| Shipping Information | In 20' container, about 25,000kg/container |
kindly reminder :
| Location | Tianjin China |
| Established Year | 1994 |
| Registered Capital | USD16 Million |
| Production Line | 11 production lines, and 13 wire drawing matchines |
| Production Capacity | PC Strand 260,000 ton PC Wire 40,000 ton Unbonded PC Strand 40,000 ton |
| Quality Control | 3 Test Laboratories and 16 Quality Controller |
| Certificate | DCL and ACRS Certificates for PC Strand ISO and SGS Certificates for Factory |
| Contact Information | Kay Whatsapp: 008615802244573 |
Welcome to Tianjin Chunpeng Prestressed Concrete Strand Co., Ltd! We are a professional manufacturer of PC Strand, PC Steel Wire, Unbonded PC Strand, Retard Bonded PC Strand and Galvanized PC Strand in Tianjin, China. Our company was established in 1994 with registered capital USD 16 million, covering an area of 48,000 m2 and building area 16, 000 m2. We have 11 production lines and 13 wire drawing machines to produce PC Strand from 4.85mm to 23mm diameter; 3 test laboratories and 15 quality control commissioners to ensure the quality requirements in accordance with I S O 9 0 0 1. There are 260 employees in our company, including 35 experts with engineer titles. The annual output is 200,000 metric tons. We are the first PC Strand manufacturer with safety certificate for large-span bridges on raiway and highway, stadiums, industrial buildings and coal mines in China. We are the long-term cooperative partner of China Railway Engineering Corporation and China State Construction Engineering Corporation, and some representative projects are Shanghai Pudong International Airport, China Capital Airport, CCTV New Building and National Aquatic Center. We have exported our PC Strand products to more than 60 countries and regions such as Malaysia, Singapore, Thailand, Korea, Japan, UK and Canada. Chunpeng welcome you to visit us and build a good cooperation!
