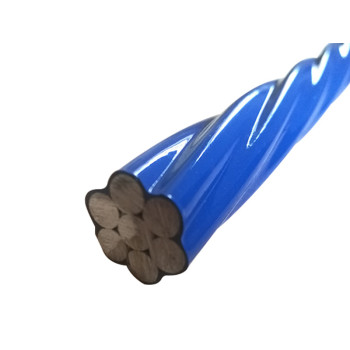

7 wires Epoxy coated PC strand manufacturer dia 15.24mm

group name: Prestressed Concrete Steel Strand

Min Order: 1 ton

brand name: Chunpeng PC Wire and PC Strand

model: 9.53mm, 12.7mm, 15.24mm

Nearest port for product export: Tianjin xingang, Qingdao

Delivery clauses under the trade mode: FOB, CFR, CIF

Acceptable payment methods: T/T, L/C

update time: Wed, 18 Nov 2020 14:40:38 GMT

contact supplier

Paramtents

Type Drawn Wire
Application Construction
Alloy Or Not Non-Alloy
Model Number 1*7,1*3
Brand Name EXA
Place of Origin Tianjin, China
Tolerance ±1%, +0.40mm/-0.20mm
Grade 82B, 270(1860Mpa)
Certification ISO9001:2000
Packing Coil packing

Packging & Delivery

Min Order1 ton

Briefing

professional manufacturer from China of Epoxy coated PC strand, founded in 1994, located in Tianjin China

Detailed

7 wires Epoxy coated PC strand manufacturer from China

1.Types: Epoxy coated PC strand

2.Size: 9.3mm/9.53mm/12.5mm/12.7mm/15.24mm/15.7mm/21.8mm/23.5mm/28.6mm

3.Raw Material:SWRH 82B High carbon steel

4.Main executive standards: GB/T5224, ASTMA416, BS5896, JIS3536, ISO6934, EN10138 or as per the technology agreement decided by both sides after negotiation.

5.Product packaging size: Inner diameter: 760mm Outer diameter: 1400mm Width of coil: 760mm

6.Packaging steps: Coils are wrapped by 8 steel strips → wrapped by waterproof cloth → wrapped by 8 steel strips (6+2) → added with wood pallet.

Application:PC Strands are mainly used in prestressed concrete structure reinforcement, such as large-span bridges on railway and highway, overhead crane beam, rock-soil anchoring project, multi-storey industrial buildings, stadiums, coal mines, etc.
