HDPE Plastic Corrugated duct Pipe for post tension prestressed ducts

group name: Plastic Corrugated Duct

Min Order: 1 piece

brand name: Chunpeng PC Wire and PC Strand

model: HDPE Duct

Nearest port for product export: Tianjin xingang, Qingdao

Delivery clauses under the trade mode: FOB, CFR, CIF

Acceptable payment methods: T/T, L/C

update time: Wed, 18 Nov 2020 14:40:38 GMT

contact supplier

Paramtents

After-sale Service Online technical support
Project Solution Capability graphic design, Others
Place of Origin Tianjin, China
Brand Name EXA
Model Number plastic type
Certificate ISO 9001:2008
Thickness 1mm-4mm
Surface treatment Post tension projects
Shape Round or Flat
Feature Corrosion Resistant
Length 5.8meters,6meters,12meters
Standard JT-T529-2004
Color Orange, white,black
Material HDPE
Sample free

Packging & Delivery

Min Order1 piece

Briefing

professional manufacturer of Corrugated duct Pipe, HDPE plastic duct and metal ducts for prestressed

Detailed

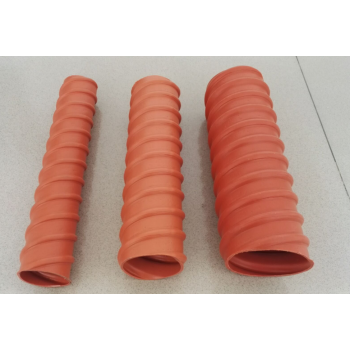

Plastic Corrugated Pipe

Prestressed corrugated pipe is a new type of pore-forming materials applicable to bridge engineering and the raw material is HDPE, which is mainly used in post-tensioned prestressed concrete structure. Prestressed corrugated pipe is the pore-forming pipeline of prestressed concrete reinforcement. The executive standard is JT/T529-2004.

1.Characteristics of Plastic Corrugated duct:

(1)Using HDPE as main raw material, plastic corrugated pipe is featured by high corrosion resistance, ageing resistance and fatigue durability.

(2)Excellent sealing and impervious performance, which is applicable to vacuum grouting.

(3)Plastic corrugated pipes are black or yellow and no defects like hard lump or severe bubble are allowed.

(4)Plastic corrugated pipe is featured by good flexibility and wearing quality. The suggested spacing between spacer bar is no more than 0.8m and the minimum bending radius is 0.9-1.5m.

2. Technical parameters:

Technical parameters table for plastic corrugated pipe (round)

Technical parameters table for plastic corrugated pipe (flat)

Performance of plastic corrugated pipe
