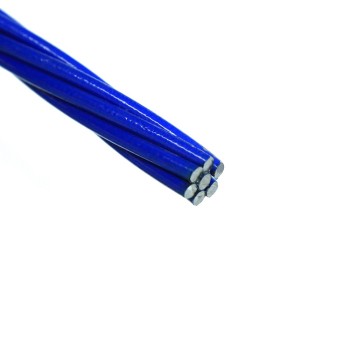

pc strand 7 wires 12.7mm prestressed concrete steel strand

group name: Prestressed Concrete Steel Strand

Min Order: 1 ton

brand name: Chunpeng PC Wire and PC Strand

model: 9.53mm, 12.7mm, 15.24mm

Nearest port for product export: Tianjin xingang, Qingdao

Delivery clauses under the trade mode: FOB, CFR, CIF

Acceptable payment methods: T/T, L/C

update time: Tue, 01 Dec 2020 16:20:29 GMT

contact supplier

Paramtents

Application Construction
Standard ASTMA416/EN10138
Packing Coil packing
Brand Name EXA
Tolerance ±1%, +0.40mm/-0.20mm
Tensile strength 1370-2160MPA
Steel Grade SWRH 82B wire rod

Packging & Delivery

Min Order1 ton

Briefing

professional manufacturer of low relaxation prestressed steel strands

Detailed

astm a416 grade 270 12.7mm low relaxation prestressed steel strands

pc strand 7 wires 12.7mm prestressed concrete steel strand

1.Types: Bonded PC steel strand,Unbonded PC steel strand and Epoxy coated PC strand

2.Size: 9.3mm/9.53mm/12.5mm/12.7mm/15.24mm/15.7mm/21.8mm/23.5mm/28.6mm

3.Raw Material:SWRH 82B High carbon steel

4.Main executive standards: GB/T5224, ASTMA416, BS5896, JIS3536, ISO6934, EN10138 or as per the technology agreement decided by both sides after negotiation.

5.Product packaging size: Inner diameter: 760mm Outer diameter: 1400mm Width of coil: 760mm

6.Packaging steps: Coils are wrapped by 8 steel strips → wrapped by waterproof cloth → wrapped by 8 steel strips (6+2) → added with wood pallet

Application:PC Strands are mainly used in prestressed concrete structure reinforcement, such as large-span bridges on railway and highway, overhead crane beam, rock-soil anchoring project, multi-storey industrial buildings, stadiums, coal mines, etc.
