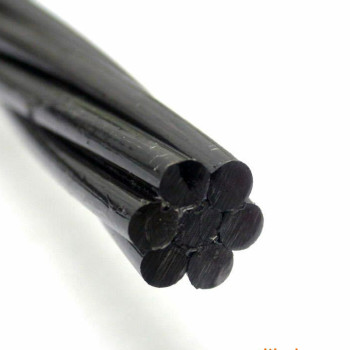

Grade 270 1860Mpa 7 wire prestressed concrete strand 12.7mm pc strand

Grade 270  1860Mpa 7 wire prestressed concrete strand 12.7mm pc strand
Grade 270  1860Mpa 7 wire prestressed concrete strand 12.7mm pc strandGrade 270  1860Mpa 7 wire prestressed concrete strand 12.7mm pc strandGrade 270  1860Mpa 7 wire prestressed concrete strand 12.7mm pc strandGrade 270  1860Mpa 7 wire prestressed concrete strand 12.7mm pc strandGrade 270  1860Mpa 7 wire prestressed concrete strand 12.7mm pc strand
group name
Prestressed Concrete Steel Strand
Min Order
1 ton
brand name
Chunpeng PC Wire and PC Strand
model
12.7mm
Nearest port for product export
Tianjin xingang, Qingdao
Delivery clauses under the trade mode
FOB, CFR, CIF
Acceptable payment methods
T/T, L/C
update time
Sun, 22 Nov 2020 14:28:41 GMT

Paramtents

  • Grade 82B, 270(1860Mpa)

  • Standard ASTMA416/EN10138

  • Model Number 1*7,1*3

  • Brand Name EXA

  • Tolerance ±1%, +0.40mm/-0.20mm

  • Tensile strength 1370-2160MPA

  • Coil weight 2.5-3.5tons

  • Standard ASTMA416

  • Type Drawn Wire

  • Certificate ISO9001

  • Application Bridge, railway, highway, building

  • Packing Roll Packing

  • MOQ 25ton

  • Processing Service Bending, Welding

  • Origin China

Packging & Delivery

  • Min Order1 ton

Briefing

Grade 270 1860Mpa 7 wire prestressed concrete strand 12.7mm pc strand

Detailed

Grade 270  1860Mpa 7 wire prestressed concrete strand 12.7mm pc strand
1.Types: Bonded PC steel strand,Unbonded PC steel strand and Epoxy coated PC strand
2.Size: 9.3mm/9.53mm/12.5mm/12.7mm/15.24mm/15.7mm/21.8mm/23.5mm/28.6mm
3.Raw Material:SWRH 82B High carbon steel
4.Main executive standards: GB/T5224, ASTMA416, BS5896, JIS3536, ISO6934, EN10138 or as per the technology agreement decided by both sides after negotiation.
5.Product packaging size: Inner diameter: 760mm Outer diameter: 1400mm Width of coil: 760mm
6.Packaging steps: Coils are wrapped by 8 steel strips → wrapped by waterproof cloth → wrapped by 8 steel strips (6+2) → added with wood pallet
Application:PC Strands are mainly used in prestressed concrete structure reinforcement, such as large-span bridges on railway and highway, overhead crane beam, rock-soil anchoring project, multi-storey industrial buildings, stadiums, coal mines, etc.
