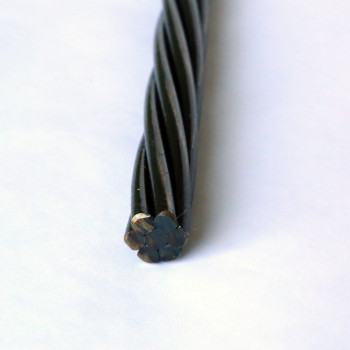

0.6" 15.24mm prestressed concrete strand EN10138 BS5896 ASTM A16
- group name
- Prestressed Concrete Steel Strand
- Min Order
- 25 metric ton
- brand name
- Chunpeng PC Wire and PC Strand
- model
- 15.24mm
- Nearest port for product export
- Tianjin xingang, Qingdao
- Delivery clauses under the trade mode
- FOB, CFR, CIF
- Acceptable payment methods
- T/T, L/C
- update time
- Sat, 06 Mar 2021 11:03:40 GMT
Paramtents
Tensile strength 1460-1860Mpa
Diameter 6.5MM-21.8MM
Certification BV/ISO9001:2000/ SGS
Structure 1*3/1*7/1*19
Grade 270(1860Mpa)
Usage Construction Materilals
Package Roll Packing
Standard ASTM A416, BS5896, EN10138
Material 77B/82B
Product name 15.24mm prestressed concrete strand
Packging & Delivery
- 140cm x140cm x80cm
-
Min Order25 metric ton
Briefing
CHUNPENG 0.6" 15.24mm prestressed concrete strand can be widely used in many applications.
Detailed
0.6" 15.24mm prestressed concrete strand EN10138 BS5896 ASTM A16
1. Item |
0.6" 15.24mm prestressed concrete strand EN10138 BS5896 ASTM A16 |
2. Specification |
1 x 7 wire, 1x2 wire,1x3 wire,1x19 wire 9.53mm, 12.7mm, 15.2mm, 15.7mm, 17.8mm, 21.8mm |
3. Appliacation |
Widely Used for any aqueduct, viaduct, bridge, tunnel and railway construction |
4. Certificate |
ISO9001:2000 SGS BV |
5. Standard | ASTM A416, BS5896, JIS G3536, GB/T5223, EN10138,PREN6138 |
6. Output | 500, 000 ton/year |
7. Features | High tensile, low relaxation |
8. Twist | Left and right-hand lay |
9. Factory Test | Norminal diameter, breaking force, elongation at rupture, tensile strength, stress relaxation property, relax value at 1000h |
10. Packing | Standard Export Package (Wrapped by steel strips, waterproof cloth sheet, wooden pallet) |
11. Original | Tianjin, China |
12. Payment | T/T, LC |
13. Delivery Time | in 10 days after we receive your deposit or LC |
Packaging & Shipping
Inner Diameter: 760mm
Outside Diameter:1400mm Max
Coil’s width: 760mm
Coil’s Weight: 2500~3500 kg
We use vapors corrosion inhibiting technology on export anti-rust packing. Out side of the coil has 3 wraps.
There are two wooden pallets on the bottom of the coil. The coil is eye to sky in the container.
